NL-Model
This easy-to-assemble, collapsible container is ideal for returnable boxes. The panels are made of plastic cardboard, so the container is lighter and easier to handle.
Containers with the standard specifications are available.
Total weight is reduced by more than 10% using plastic cardboard panels (compared to our conventional models). This makes the container much easier to assemble and collapse, and to handle. Reduces the amount of cardboard and cushioning materials necessary, contributing to the achievement of the SDGs and reducing CO2 emissions.
Primary Applications
The STEC NL-Model is ideal for returnable boxes that can be used repeatedly. Can be stacked in tiers for improved storage and transport efficiency. The plastic cardboard panels reduce the total weight of the container by more than 10% (compared to our conventional models). This makes the container much easier to assemble and collapse, and to handle. Compatible with automated equipment.
STEC NL-Model Applications
- Containers for transporting goods between factories and companies
- Containers for storing goods in factories and warehouses
- Containers for transporting bulk goods to distribution centers
- Containers for transporting goods overseas
Examples
Transporting and storing preforms, semiconductor components, chemical raw materials, food products, pharmaceuticals, and automotive parts, and recovering waste fluorescent tubes.
Structure
Bottom of the fixing side panel assembly

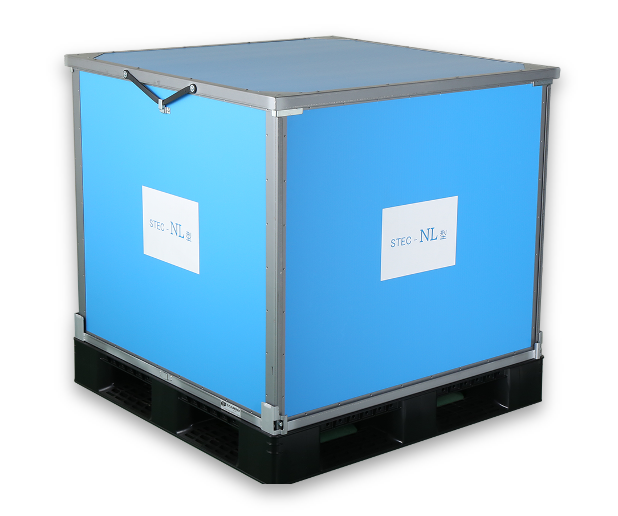

External view
Internal view
Top of the fixing side panel assembly
Right after the insertion side panel is inserted
Slide diagonally upwards and lock
Side panel assembly is complete
Structure is easy to assemble and collapse while also very stable, with almost no wobble.
Well suited for plastic cardboard.
Standard Specifications
| Name | Collapsible and Assembled Containers (Plastic Cardboard) STEC NL-Model | ||
|---|---|---|---|
| Type | NL-Model | ||
| Dimensions | External W×L×H | mm | 1,100 × 1,100 × 1,070 |
| Internal W×L×H | mm | 1,037 × 1,037 × 900 | |
| Volume | m3 | 0.96 | |
| Dimensions when collapsed (W×L×H) | mm | 1,100 × 1,100 × 247 | |
Our products are designed and manufactured to order based on customer requirements. Provide us with the dimensions you need or any other specifications.
Products with the above standard specifications are available. Approximately two weeks for delivery after receiving order.
