Product Design

STEC Product Design (Presentation to Customers)

Design Technology—Presentations Using 3D CAD

Proposing product design using 3D CAD for easy visual understanding

Analysis Technology—Presentation Using Computer Simulations

Proposing specifications that will best meet the particular needs of the customer using computer simulations such as strength analysis

Example of Analysis
Simulation of stacking STEC NL-Model in tiers (applying a four-tonne load)

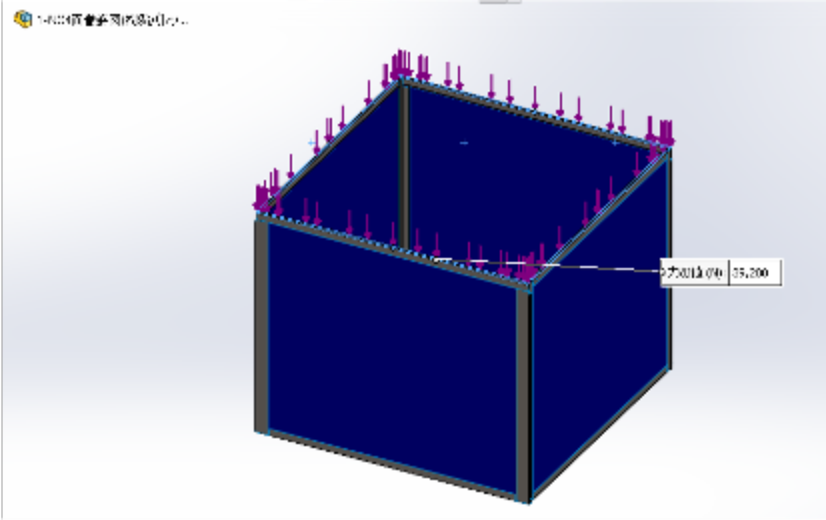

Analysis model (→ represents the load direction when stacking)

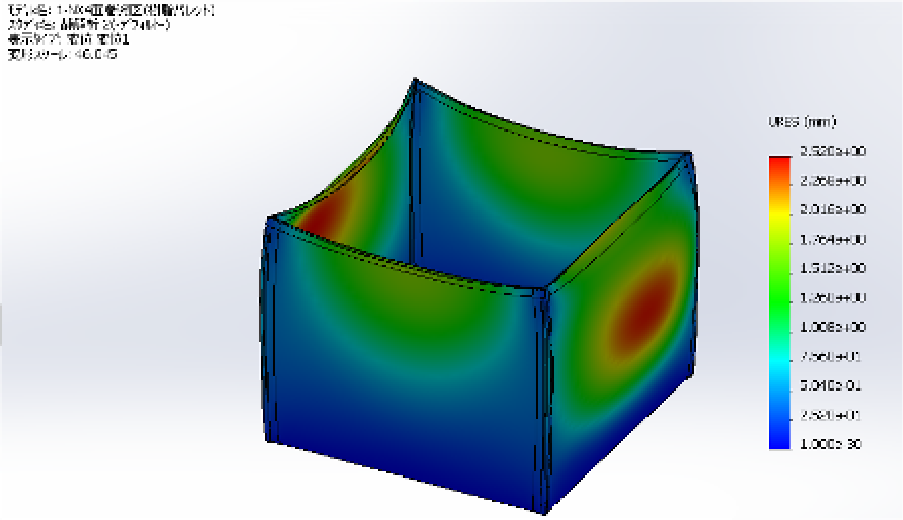

Analysis results (state and level of deformation)

This 3D deformation model is distorted for illustrative purposes.

Various strength tests are conducted with the cooperation of external organizations after consultation with the customer.
